Размеры корпуса EuraDrives EM 30 |
|

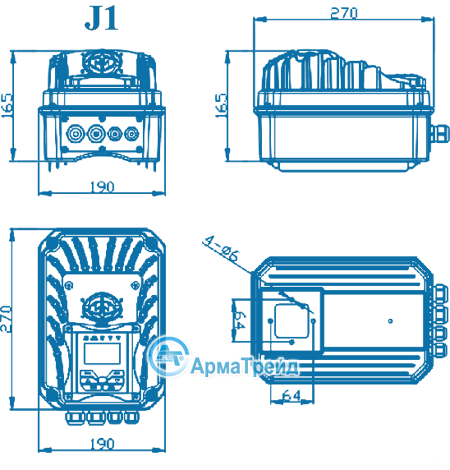

0,4 - 3,0
kW |

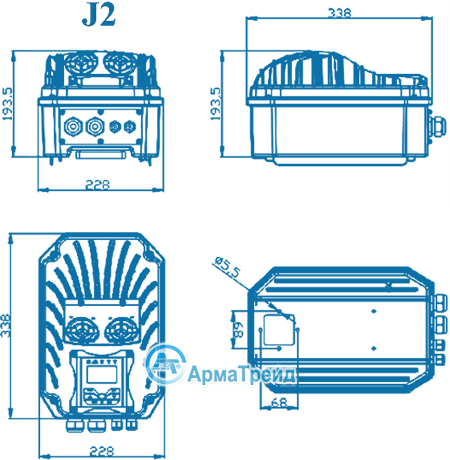

4,0 -
7,5 kW |
|
EM30-0004S2-1Ph-230V - |
0.4kW |
|
EM30-0007S2-1Ph-230V - |
0.75kW |
|
EM30-0015S2-1Ph-230V - |
1.5kW |
|
EM30-0022S2-1Ph-230V - |
2.2kW |
|
|
|
|
EM30-0007T3-3Ph-400V - |
0.75kW |
|
EM30-0015T3-3Ph-400V - |
1.5kW |
|
EM30-0022T3-3Ph-400V - |
2.2kW |
|
EM30-0030T3-3Ph-400V - |
3.0kW |
|
|
EM30-0040T3-3Ph-400V - |
4.0kW |
|
EM30-0055T3-3Ph-400V - |
5.5kW |
|
EM30-0075T3-3Ph-400V - |
7.5kW |
|
|
|
|
|

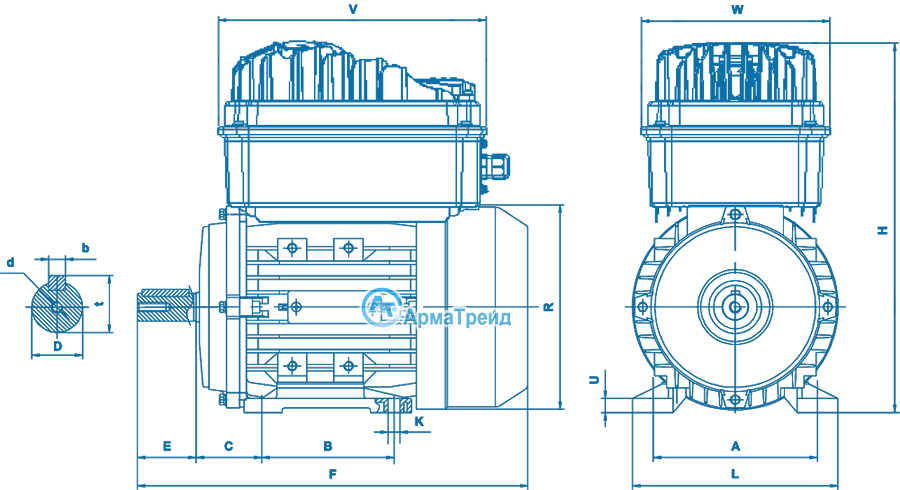

Размеры мотоинверторов
монтажного исполнения B3 |
|
 |
|
Двигатели с однофазным преобразователем частоты
EM30-...S2 220V IM:B3 |
|
Наименование |
A |
B |
C |
D |
d |
E |
F |
H |
K |
L |
R |
U |
V |
W |
b |
t |
|
EM30-0004S2-AT63...B3 |
100 |
80 |
40 |
11 j6 |
M4x0.7 |
23 |
221 |
290 |
7 |
120 |
128 |
7 |
270 |
190 |
4 |
12.5 |
|
EM30-0007S2-AT71...B3 |
112 |
90 |
45 |
14 j6 |
M5x0.8 |
30 |
255 |
305 |
7 |
132 |
142 |
11 |
270 |
190 |
5 |
16 |
|
EM30-0007S2-AT80...B3 |
125 |
100 |
50 |
19 j6 |
M6x1 |
40 |
292 |
330 |
10 |
162 |
162 |
10 |
270 |
190 |
6 |
21.5 |
|
EM30-0015S2-AT90S...B3
EM30-0022S2-AT90S...B3 |
140 |
100 |
56 |
24 j6 |
M8x1.25 |
50 |
337 |
360 |
9 |
175 |
177 |
11 |
270 |
190 |
8 |
27 |
|
EM30-0015S2-AT90L...B3
EM30-0022S2-AT90L...B3 |
125 |
|
|
Двигатели
с трехфазным преобразователем
частоты EM30-...T3 380V
IM:B3 |
|
Наименование |
A |
B |
C |
D |
d |
E |
F |
H |
K |
L |
R |
U |
V |
W |
b |
t |
|
EM30-0007T3-AT71...B3 |
112 |
90 |
45 |
14 j6 |
M5x0.8 |
30 |
255 |
305 |
7 |
132 |
142 |
11 |
270 |
190 |
5 |
16 |
|
EM30-0007T3-AT80...B3 |
125 |
100 |
50 |
19 j6 |
M6x1 |
40 |
292 |
330 |
10 |
162 |
162 |
10 |
270 |
190 |
6 |
21.5 |
|
EM30-0015T3-AT90S...B3
EM30-0022T3-AT90S...B3 |
140 |
100 |
56 |
24 j6 |
M8x1.25 |
50 |
337 |
360 |
9 |
175 |
177 |
11 |
270 |
190 |
8 |
27 |
|
EM30-0015T3-AT90L...B3
EM30-0022T3-AT90L...B3 |
125 |
|
EM30-0030T3-AT100...B3 |
150 |
140 |
63 |
28 j6 |
M10x1.5 |
60 |
386 |
380 |
12 |
199 |
202 |
14 |
270 |
190 |
8 |
31 |
|
EM30-0040T3-AT112...B3 |
190 |
140 |
70 |
28 j6 |
M10x1.5 |
60 |
393 |
440 |
11 |
220 |
230 |
15 |
338 |
228 |
8 |
31 |
|
EM30-0055T3-AT132S...B3
EM30-0075T3-AT132S...B3 |
216 |
140 |
89 |
38 k6 |
M12x1.75 |
80 |
493 |
485 |
11.5 |
253 |
260 |
15 |
338 |
228 |
10 |
41 |
|
EM30-0055T3-AT132M...B3
EM30-0075T3-AT132M...B3 |
178 |
|
|
|
|

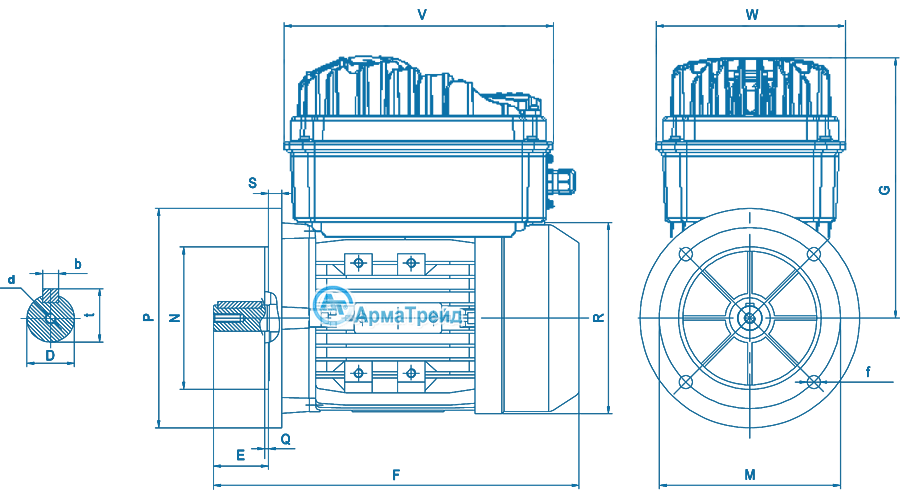

Размеры мотоинверторов
монтажного исполнения B5 |
|
 |
|
Двигатели с однофазным преобразователем частоты
EM30-...S2 220V IM:B5 |
|
Наименование |
D |
d |
E |
F |
f |
G |
M |
N |
P |
Q |
R |
S |
V |
W |
b |
t |
|
EM30-0004S2-AT63...B5 |
11j6 |
M4x0.7 |
23 |
220 |
10 |
227 |
115 |
95j6 |
140 |
3 |
128 |
9 |
270 |
190 |
4 |
12.5 |
|
EM30-0007S2-AT71...B5 |
14j6 |
M5x0.8 |
30 |
255 |
10 |
234 |
130 |
110j6 |
160 |
3 |
140 |
9 |
270 |
190 |
5 |
16 |
|
EM30-0007S2-AT80...B5 |
19j6 |
M6x1 |
40 |
292 |
12 |
250 |
165 |
130j6 |
200 |
3.5 |
160 |
12 |
270 |
190 |
6 |
21.5 |
|
EM30-0015S2-AT90...B5 |
24j6 |
M8x1.25 |
50 |
337 |
12 |
270 |
165 |
130j6 |
200 |
3.5 |
175 |
12 |
270 |
190 |
8 |
27 |
|
EM30-0022S2-AT90...B5 |
|
|
Двигатели
с трехфазным преобразователем
частоты EM30-...T3 380V
IM:B5 |
|
Наименование |
D |
d |
E |
F |
f |
G |
M |
N |
P |
Q |
R |
S |
V |
W |
b |
t |
|
EM30-0007T3-AT71...B5 |
14j6 |
M5x0.8 |
30 |
255 |
10 |
234 |
130 |
110j6 |
160 |
3 |
140 |
9 |
270 |
190 |
5 |
16 |
|
EM30-0007T3-AT80...B5 |
19j6 |
M6x1 |
40 |
292 |
12 |
250 |
165 |
130j6 |
200 |
3.5 |
160 |
12 |
270 |
190 |
6 |
21.5 |
|
EM30-0015T3-AT90...B5 |
24j6 |
M8x1.25 |
50 |
337 |
12 |
270 |
165 |
130j6 |
200 |
3.5 |
175 |
12 |
270 |
190 |
8 |
27 |
|
EM30-0022T3-AT90...B5 |
|
EM30-0030T3-AT100...B5 |
28j6 |
M10x1.5 |
60 |
386 |
15 |
280 |
215 |
180j6 |
250 |
4 |
200 |
15 |
270 |
190 |
8 |
31 |
|
EM30-0040T3-AT112...B5 |
28j6 |
M10x1.5 |
60 |
393 |
14 |
328 |
215 |
180j6 |
250 |
4 |
228 |
13 |
338 |
228 |
8 |
31 |
|
EM30-0055T3-AT132...B5 |
38k6 |
M12x1.75 |
80 |
493 |
15 |
353 |
265 |
230j6 |
300 |
4 |
258 |
14 |
338 |
228 |
10 |
41 |
|
EM30-0075T3-AT132...B5 |
|
|
|
|

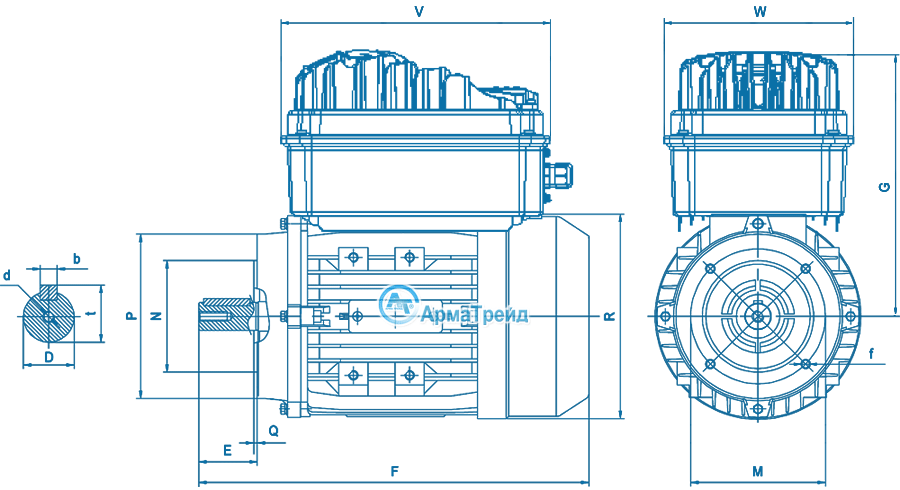

Размеры мотоинверторов
монтажного исполнения B14 |
|
 |
|
Двигатели с однофазным преобразователем частоты
EM30-...S2 220V IM:B14 |
|
Наименование |
D |
d |
E |
F |
f |
G |
M |
N |
P |
Q |
R |
V |
W |
b |
t |
|
EM30-0004S2-AT63...B14 |
11 j6 |
M4x0.7 |
23 |
221 |
M5 |
227 |
75 |
60 j6 |
90 |
2.5 |
128 |
270 |
190 |
4 |
12.5 |
|
EM30-0007S2-AT71...B14 |
14 j6 |
M5x0.8 |
30 |
255 |
M6 |
234 |
85 |
70 j6 |
105 |
2.5 |
142 |
270 |
190 |
5 |
16 |
|
EM30-0007S2-AT80...B14 |
19 j6 |
M6x1 |
40 |
292 |
M6 |
250 |
100 |
80 j6 |
120 |
3 |
162 |
270 |
190 |
6 |
21.5 |
|
EM30-0015S2-AT90...B14 |
24 j6 |
M8x1.25 |
50 |
337 |
M8 |
270 |
115 |
95 j6 |
140 |
3 |
177 |
270 |
190 |
8 |
27 |
|
EM30-0022S2-AT90...B14 |
|
|
Двигатели
с трехфазным преобразователем
частоты EM30-...T3 380V
IM:B14 |
|
Наименование |
D |
d |
E |
F |
f |
G |
M |
N |
P |
Q |
R |
V |
W |
b |
t |
|
EM30-0007T3-AT71...B14 |
14 j6 |
M5x0.8 |
30 |
255 |
M6 |
234 |
85 |
70 j6 |
105 |
2.5 |
142 |
270 |
190 |
5 |
16 |
|
EM30-0007T3-AT80...B14 |
19 j6 |
M6x1 |
40 |
292 |
M6 |
250 |
100 |
80 j6 |
120 |
3 |
162 |
270 |
190 |
6 |
21.5 |
|
EM30-0015T3-AT90...B14 |
24 j6 |
M8x1.25 |
50 |
337 |
M8 |
270 |
115 |
95 j6 |
140 |
3 |
177 |
270 |
190 |
8 |
27 |
|
EM30-0022T3-AT90...B14 |
|
EM30-0030T3-AT100...B14 |
28 j6 |
M10x1.5 |
60 |
386 |
M8 |
280 |
130 |
110 j6 |
160 |
3.5 |
202 |
270 |
190 |
8 |
31 |
|
EM30-0040T3-AT112...B14 |
28 j6 |
M10x1.5 |
60 |
393 |
M8 |
328 |
130 |
110 j6 |
160 |
3.5 |
230 |
338 |
228 |
8 |
31 |
|
EM30-0055T3-AT132...B14 |
38 k6 |
M12x1.75 |
80 |
493 |
M8 |
353 |
165 |
130 j6 |
200 |
3.5 |
258 |
338 |
228 |
10 |
41 |
|
EM30-0075T3-AT132...B14 |
|
|
|
